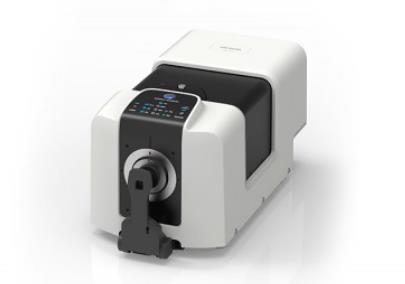

CM-36dG (¹Ý»ç+Åõ°ú+±¤ÅÃ)

ÁÖ¿äƯ¡

ÁÖ¿ä¿ëµµ

High-precision spectrophotometer with ISO compliant gloss sensor and stability check

The CM-36dG Spectrophotometer is a high-precision and high-reliability bench-top instrument capable of measuring colour either in reflectance or transmittance, ideally suited to a wide range of applications such as Plastics, Paints, Ceramics, Chemicals etc.

For the first time ever, Konica Minolta Sensing has integrated an ISO 2813 compliant 60¡Æ gloss sensor inside a benchtop spectrophotometer, to simultaneously measure Colour and Gloss. As both values are measured and reported together operator errors are reduced, the Quality Control workflow can be streamlined and equipment and maintenance costs saved.

The CM-36dG utilizes the patented and proven Numerical UV Control (NUVC), unsurpassed technology for UV adjustments when measuring samples that contain optical brighteners such as pulp, paper, textiles or chemicals.

Several new features have been included to improve the user experience, status LEDs provide clear visual feedback, a camera preview system for sample positioning and reporting, and versatile port alignment allowing the device to be used horizontally or rotated 90¡Æ to measure e.g. powdery materials in ¡°Top-port¡± style.

Konica Minolta¡¯s patented technologies assure the highest accuracy and repeatability levels for this class of instrument. Konica Minolta¡¯s renowned accuracy and stability is supported by our latest innovation ¡°Wavelength Analysis and Adjustment¡± (WAA) to give customers the ability to check and adjust the CM-36dG during calibration, assuring that the instrument is in perfect condition.


Efficient sample presentation

Four screw threads and linear guidelines in the front plate enable the operator to create custom jigs to accurately position samples – maximising the repeatability and speed of the measurement process.

Camera previewer for accurate sample positioning

The integrated camera viewer provides a clear preview of the sample for precise targeting and control the area to be measured. The software can capture images of the area that is measured to provide detailed and concise reporting.

Reflectance and Transmittance measurements, horizontal or top-port

The CM-36dG can measure solid or liquid samples in reflectance or transmission mode, horizontally or upside down. This offers great flexibility for various samples ranging from opaque to translucent and transparent.
The large, open sided transmission chamber can be used to measure transparent or translucent samples of any size with ease. The transmission chamber lid features a lift-and-turn lock to prevent accidental opening of the device and locks the chamber when used upside down to measure e.g. powdery material in round cuvettes.

Numerical UV Control for Accurate Measurements of Fluorescent Materials

Accurate measurement of materials such as paper or cloth treated with optical brighteners (OBA) requires precise control of the UV component. The patented Numerical UV Control method (familiar to customers who used the CM-3600A) provides UV control by using proprietary calculations to combine the results from flashes of two xenon lamps: one with full UV energy, the other with UV energy removed by a UV-cutoff filter (either 400 nm or 420 nm). This method eliminates the need for lengthy filter position adjustment processes, and enables UV adjustment by Whiteness Index, Tint, Brightness, or UV profile.

Easy to read LED indicator panel with measurement button

The LED indicator panel displays current measurement settings at a glance. In addition, the measurement button in the panel allows to measure samples remotely.

Measurement Areas to match your samples

The CM-36dG offers four different apertures with ¨ª 4.0, 8.0, 16.0 and 25.4 mm to provide a suitable measurement size for any sample.

¡°Wavelength Analysis & Adjustment¡± – (WAA)

¡°Analyze - Adjust - Activate¡± - Konica Minolta¡¯s patented technology checks and adjusts possible wavelength shift during each instrument calibration. This procedure assures unsurpassed long-term measurement stability and can keep measurements stable even for changes in temperature or environment conditions over time.

WAA allows the operator to easily distinguish whether the instrument itself is the cause of measurement differences, reducing troubleshooting time and providing improved certainty within supply chains.





  • °¢ Á¾ ºÐ¾ßÀÇ ¿¬±¸, °³¹ß ºÎ¹®, Ç°Áú°ü¸® ºÎ¹®
  • ´ëÇС¤½ÃÇè¼Ò¡¤°Ë»ç±â°ü
  • ÁÖ¿ä»ç¾ç
    Benchtop Spectrophotometers CM-36dG

    Color

    Illumination/ viewing system

    Reflectance:

    di:8¡Æ, de:8¡Æ (diffused illumination, 8¡Æ viewing)

    Conforms to CIE No.15 (2004), ISO7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z 8722 Condition c standard condition C standards.

    Transmittance:

    di:0¡Æ, de:0¡Æ (diffused illumination, 0-degree viewing)

    Conforms to CIE No.15, ASTM E-1164 and DIN 5033 Teil 7 standards.

    Integrating sphere size

    ¨ª152 mm

    Detector

    Dual 40-element silicon photodiode array

    Spectral separation device

    Planar diffraction grating

    Wavelength range

    360-740 nm

    Wavelength pitch

    10 nm

    Half bandwidth

    approx. 10 nm

    Measurement range

    0-200%

    Resolution: 0.01%

    Light source

    3 Pulsed Xenon lamps (NUVC)

    Light source life time

    more than 1 Million

    Illumination / Measurement area [mm]

    LAV£º   ¨ª25.4 / ¨ª30.0

    LMAV£º¨ª16.0 / ¨ª20.0

    MAV£º  ¨ª  8.0 / ¨ª11.0

    SAV£º  ¨ª  4.0 / ¨ª  7.0

    Trans£º¨ª17.0 / ¨ª24.0

    Measurement time

    approx.1sec (SCI or SCE + gloss measurement)

    Min. measurement interval

    approx.2sec (SCI or SCE + gloss measurement)

    Repeatability

    Std. dev. within ¥ÄE*ab 0.02

    IIA

    within ¥ÄE*ab 0.12 (LAV/SCI) Average for 12 BCRA Series II color tiles compared to values measured with master body.

    UV control

    NUVC (UV100 (Full UV), UV400nm, UV420nm, UV0)



    Gloss

    Measurement geometry

    60¡Æ
    (complies to ISO 2813, ISO 7668, ASTM D523-08, ASTM D2457-13, DIN 67530, JIS-Z8741, JIS-K5600)

    Light source

    White LED

    Detector

    Silicon photo diode

    Measurement range

    0-200 GU

    Resolution: 0.01 GU

    Measurement area [mm]

    MAV: ¨ª10.0 x 8.0

    SAV: ¨ª3.0

    Repeatability (MAV)

    0-10 GU: within 0.1 GU

    10-100 GU: within 0.2 GU

    >100 GU: within 0.2% of indicated value (Standard deviation)

    IIA (MAV)

    0-10 GU: ¡¾0.2 GU

    10-100 GU: ¡¾0.5 GU

    Sample preview

    RGB Camera

    Internal Performance Check*2

    WAA (Wavelength Analysis & Adjustment) Technology

    Interfacing

    USB 2.0

    Operation temperature / humidity range

    13-33¡ÆC / rH 80% or less (at 35¡ÆC) with no condensation

    Storage temperature / humidity range

    0-40¡ÆC / rH 80% or less (at 35¡ÆC) with no condensation

    Size [mm]

     248 x 250 x498 mm

    Weight [kg]

     8.4 kg

    Specifications and appearance subject to change without notice.

    Company names and product names herein are trademarks or registered trademarks of their respective companies.
